Shroud

Compressor volute casing with epoxy resin sprayed on its inner wall for rust prevention
Rust prevention process of spraying epoxy resin on the inner wall of the snail ca。

Front cover of impeller: ductile cast iron(ASTM A-536 GR 60 -40-18)
Shroud: Nodular Iron (ASTM A 5536 GR 60-40-18)

Diversion device modification:
1、Special metal layer adhesion to cope with erosion and corrosion;
2、The original material was cast iron, which is completely corrosion-resistant;
3、Epoxy coating or PTFE coating is prone to damage and peeling off;

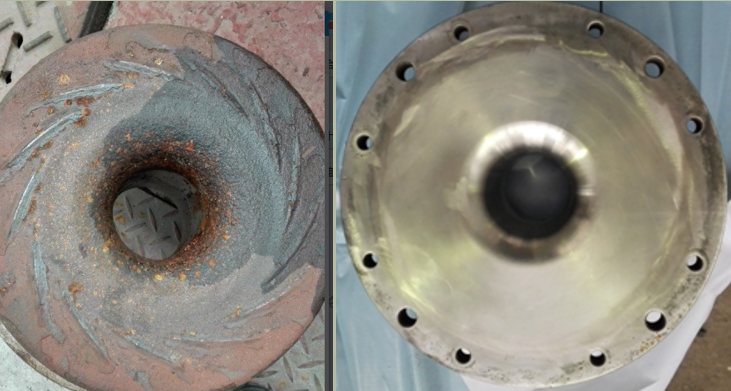

Before-and-after comparison of the modified diversion device: eroded shroud surface versus smooth metal-coated surface
